Overview

Project Overview¶

Welcome to Web & Attacks 101.

This course, referred to as a "Core Section", is all about learning the foundations of web application security by attacking and defending a real, deliberately vulnerable web app, then finishing and shipping that same application as a production Web Threat Intelligence Dashboard.

The material follows the narrative from Enterprise 101, Networks & Attacks 101, and Cloud & Attacks 101. Your on‑prem VMs, attacker host, Wazuh stack, and the AWS threat‑intelligence pipeline you built in CA101 all provide context for the hybrid detection scenarios here. The guides explain the why behind each vulnerability and control, not only the click-path.

👉 Journey To Production: Web & Attacks 101 is split into two environments. First a local Docker lab (INSECURE-threat-intel-app) where you run the six web attacks and defenses. This runs entirely on your workstation and needs nothing from the other Core Sections. Second, the production path that finishes the CA101 threat‑intelligence dashboard and migrates it to a budget‑friendly host (Fly.io + Neon) with CI/CD and a custom domain.

Network Topologies¶

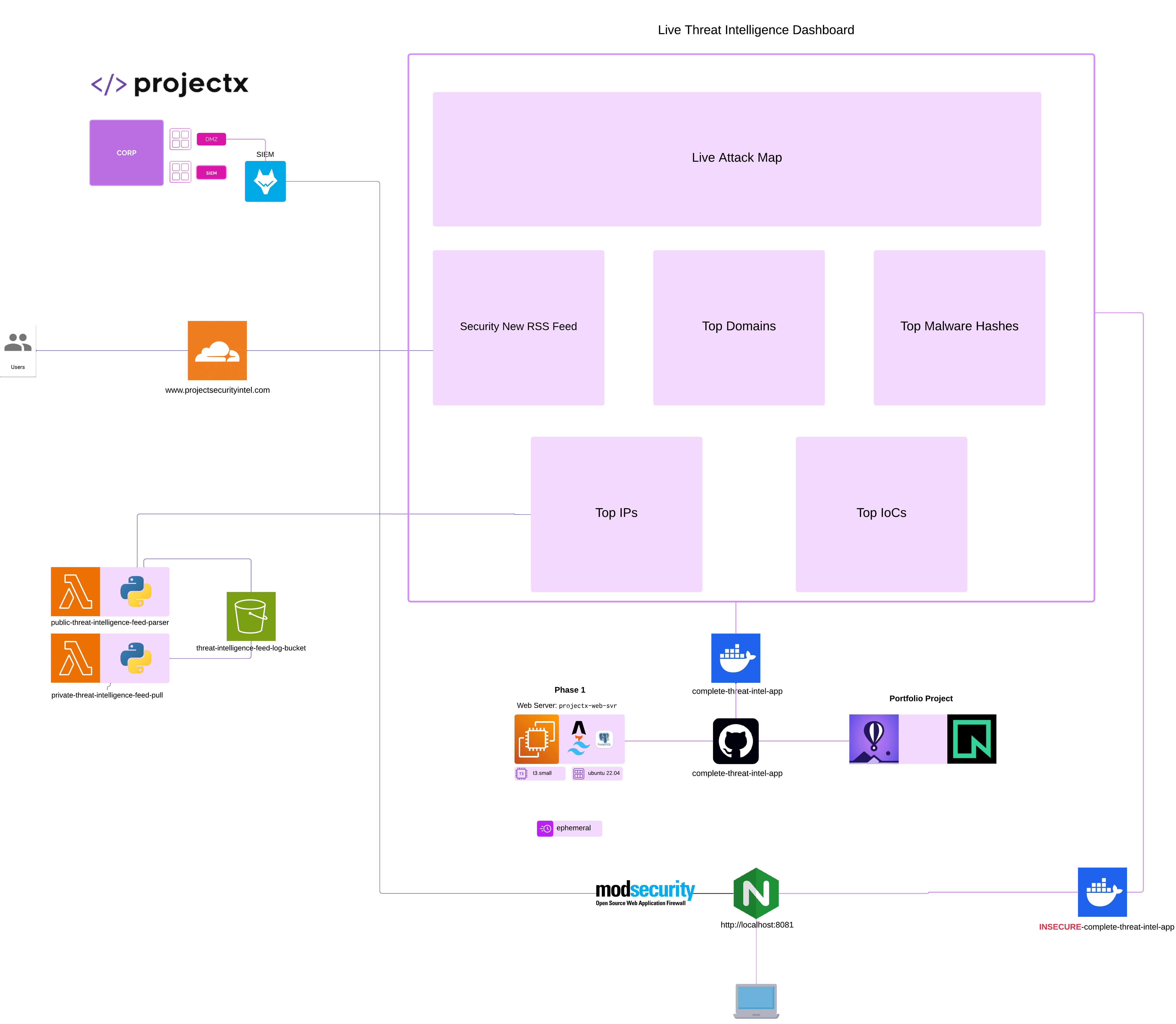

WA101 topology. — WA101 topology (click to zoom)

All topologies were made with Lucidchart.

There are two networks to keep separate in your head:

1. Local Docker lab (attacks + WAF): isolated on your workstation, browsed at http://localhost:8081.

Your browser :8081
       ↓
  [nginx]          reverse proxy (:80)  ← swapped for ModSecurity + OWASP CRS in the WAF guide
       ↓
  [app container]  Astro SSR + auth (:4321, internal)
       ↓
  [postgres]       synthetic panel data + lab vulnerability tables

2. Production / portfolio (dashboard): the finished app hosted publicly.

git push main → GitHub Actions → flyctl deploy → Fly.io (HTTPS) → Astro SSR
                                                        ↓
                                                 Neon Postgres (TLS, dashboard.panel_feed)

EventBridge → public-threat-intelligence-feed-parser → S3 (.json)
            → private-db-threat-intelligence-feed-pull → Neon (INSERT)

Local lab is local only

Do not expose port 8081 (or the vulnerable app) to the public internet. The INSECURE-threat-intel-app is intentionally broken and is meant to be reached only from your own machine.

Attacker¶

We will be performing "ad hoc" attacks, similar to NA101, CA101, and now WA101. Instead of an end-to-end attack, like we saw in Enterprise 101, each of our attack scenarios corresponds to an attack tactic (the why) and technique (the how). All six web attacks are driven from Burp Suite against the local lab.

"Likeliness" Meter¶

Each attack is rated on the "Likeliness Meter" or how likely the attack is to happen in the real world.

Unlikely: Most likely won't happen (never say never).
Moderate: Has a chance of happening given certain context and dependencies (i.e. the attacker has to be on the same WiFi network).
Likely: Could happen, especially if certain conditions are met (and security controls have not been met).
High: Will likely happen given conditions (i.e. brute forcing passwords on an open SSH server).

👉 Why?: Security training often focuses on disparate attack tactics and techniques without disclosing whether the attack would actually be real-world. As we are interested in the security components of these labs, it's important to know how likely an attack is to actually happen.

Exercise Files¶

Exercise files are used throughout Web & Attacks 101. We use exercise files for:

1) The deliberately vulnerable INSECURE-threat-intel-app Docker stack (attacks + WAF lab).

2) The complete-threat-intel-app Astro dashboard, plus its Dockerfile, fly.toml, and .github/workflows/deploy-fly.yml for the portfolio deploy.

3) The threat intelligence Lambda functions and the GeoLite2 Lambda layer build script.

You are welcomed to download these project files; the full code is not embedded into the guides. They are linked to the respective GitHub repository and called out during each guide.

Github Repository

Clone the repository: git clone https://github.com/projectsecio/exercise-files/tree/main/web-attacks-101

Or

Book mark the above and download as you go, just make sure you use dark mode, it gives you a power.

Infrastructure¶

Unlike the earlier Core Sections there are no new virtual machines to build. WA101's infrastructure is a set of containers on your workstation for the attack/defense labs, plus cloud services for the portfolio deploy (most of which are free tiers or reuse what you already provisioned in CA101).

Local Docker Lab: `INSECURE-threat-intel-app`¶

Runs three containers via docker compose. Browse it at http://localhost:8081.

Container	Image / build	Port	Function
`nginx`	`nginx:1.27-alpine`	8081 → 80	Reverse proxy in front of the app (swapped for the WAF in the ModSecurity guide)
`app`	Built from `Dockerfile` (Astro 5 SSR + `@astrojs/node`)	4321 (internal)	Dashboard, login, six feed panels, and the deliberately vulnerable features
`postgres`	`postgres:16-alpine`	internal	`dashboard.panel_feed` synthetic data + lab vulnerability tables

Cloud / Production (Portfolio Deploy)¶

The portfolio path finishes the CA101 dashboard and moves it to a low-cost host. Most items reuse CA101 resources.

Resource	Function	Core Section
`complete-threat-intel-app`	Finished Astro/Tailwind/Node SSR dashboard	WA101
Fly.io app (`your-unique-threat-intel-dashboard`)	Container host for the dashboard (auto-stop, 512 MB)	WA101
Neon (`neondb`, `dashboard.panel_feed`)	Serverless PostgreSQL over TLS	WA101
`public-threat-intelligence-feed-parser`	Lambda: pulls feeds, writes S3 JSON	CA101
`private-db-threat-intelligence-feed-pull`	Lambda: reads S3, inserts rows into Neon/Postgres	CA101
`threat-intel-lambda-layer`	Lambda layer: `geoip2` / `maxminddb` + `GeoLite2-Country.mmdb`	WA101
EventBridge Scheduler (`feed-*-daily`)	Daily 2:00 AM `America/Chicago` per panel	WA101
S3 feed/log bucket + `expire-feed-json-after-14-days`	Feed JSON storage + 14-day lifecycle	CA101 / WA101
`projectx-prod-websvr-public` (EC2)	Legacy web-server host (optional, pre-Fly path)	CA101
Cloudflare DNS (A / CNAME records)	Maps your domain to Fly (CNAME) or EC2 (A)	WA101
GitHub repo + `deploy-fly.yml`	Source control + CI/CD to Fly on push to `main`	WA101

Optional NA101 / CA101 Integration¶

Optional infrastructure if you want to connect the logging and detection content during the defenses section (the WAF → Wazuh scenario).

Resource	Function	Core Section
`sec-box` (Wazuh manager)	SIEM that receives ModSecurity WAF alerts	NA101
Wazuh agent (on the Docker host)	Reads `modsec_audit.log` and forwards to the manager	NA101

Accounts & Credentials¶

WA101 uses a mix of lab logins (baked into the app) and third-party service accounts (mostly free tiers) for the portfolio deploy. Store any real tokens/passwords in a password manager — never commit them.

Account / Credential	Value / Identifier	Where	Purpose
Lab dashboard login	`analyst` / `projectx`	Local Docker app (`localhost:8081`)	Sign in to the vulnerable app (`AUTH_USERNAME` / `AUTH_PASSWORD`)
`AUTH_SECRET`	see `docker-compose.yml`	`app` container	Session cookie signing
`cti-uploader-role`	simulated AWS keys (fake)	Simulated IMDS in the app	SSRF lab credential-theft target
GitHub account + PAT	scopes: `repo`, `workflow`	GitHub	Push code and trigger Actions
`FLY_API_TOKEN`	`fly tokens create deploy`	GitHub Actions secret	Let CI deploy to Fly.io
Neon database user	`neondb_owner` + password	Neon	PostgreSQL owner for `dashboard` schema
Fly.io account	—	fly.io	Host the dashboard container
Cloudflare account	—	cloudflare.com	Register/manage domain + DNS
MaxMind account + license key	GeoLite2 (free EULA)	maxmind.com	Download `GeoLite2-Country.mmdb` for the layer
AWS account (from CA101)	`projectx-prod-*` identities	AWS	Feed Lambdas, S3, EventBridge, Secrets Manager

Do not commit secrets

Database credentials belong in fly secrets set (runtime). Never in Git. The FLY_API_TOKEN lives only as a GitHub Actions secret. Never commit .env, Neon passwords, or the MaxMind .mmdb.

Tools¶

Enterprise Tools + Defense¶

Docker / Docker Compose v2: Build and run the local INSECURE-threat-intel-app stack (npm run docker:up, docker compose -f docker/docker-compose.yml up --build).

nginx: Reverse proxy that fronts the app on port 8081 in the Docker lab.

ModSecurity v3 + OWASP Core Rule Set (CRS): The Web Application Firewall (owasp/modsecurity-crs:nginx-alpine) used to detect and block injection attacks without code changes; runs in DetectionOnly then Blocking mode.

Wazuh: SIEM (from NA101) that ingests the ModSecurity JSON audit log and raises WA101-tagged alerts mapped to MITRE ATT&CK.

Astro / Node.js 22: The dashboard framework and runtime (npm ci, npm run build, npm run dev).

psql: PostgreSQL client for creating schema/objects and verifying dashboard.panel_feed on Postgres or Neon.

aws (AWS CLI): Configure schedules/permissions, query Secrets Manager (get-secret-value), and manage the feed Lambdas, S3 lifecycle, and EventBridge.

flyctl: Deploy and manage the dashboard on Fly.io (fly deploy, fly secrets set, fly certs add).

Git + GitHub Actions: Source control and CI/CD (deploy-fly.yml) that build and deploy on every push to main.

Cloudflare: DNS and TLS in front of the dashboard (A record to EC2 or CNAME to Fly).

Offense¶

Burp Suite Community: The primary attack tool for all six web attacks — Proxy / HTTP history, Repeater, Intercept, Target site map, Decoder, and (limited) Intruder. Default listener on 127.0.0.1:8080 does not conflict with the lab app on 8081.

curl: Fire single attack payloads at the app (e.g. SQLi tautology, XSS script, command-injection metacharacters, SSRF metadata URL), especially when demonstrating the WAF.

Crafted SVG payloads: Hand-written SVG files with embedded <image href> references used to drive the image-processing SSRF against the simulated cloud metadata service.

Downloads, VMs, and tools¶

All downloads are already a part of the exercise files on Github. WA101 introduces no new ISOs or virtual machines, the labs run in Docker containers and cloud service free tiers.

Guides Numerical Order¶

The numerical order for the step-by-step guides is already in place based on the navigation menu. These guides serve as the basis for the project. It is recommended the respective guide docs page is opened while following along in the program.

👉 If you prefer to follow content by reading, these guides on this docs site will provide the same information as the video lectures.

Guides¶

Follow the sections in the this order:

Finish Web Threat Intelligence Dashboard (AWS): Feed panels, EventBridge schedules, 14-day retention
Portfolio Project — Finish Web Threat Intelligence Dashboard: Deploy (Fly.io + Neon), GitHub CI/CD, optional nav menu, domain registration
Insecure — Build the local Docker container
- Set up the local Docker lab container
- Burp Suite installation and basics
Attacks: SQL Injection, XSS, IDOR, CSRF, SSRF, Command Injection
Defenses: SQLi sanitizing, XSS + CSP, IDOR authorization checks, CSRF tokens, SSRF outbound allowlist, shell execution, and the WAF (ModSecurity + CRS → Wazuh)

Guides Format

The screenshots always conform to step in text, then screenshot evidence below it.

Guide format — Text step, then evidence screenshot (Enterprise 101 style; WA101 guides follow the same pattern)

We hope you enjoy this core section!
