Provision & Setup Ubuntu Desktop 26.04

Prerequisites

  1. Virtualbox or VMware Workstation Pro installed.
  2. Virtual Machine with Ubuntu 26.04 ISO has been downloaded and provisioned (the ISO should be attached to the new VM).
  3. Windows Server 2025 with AD Directory Services (ADDS) configured and turned on.

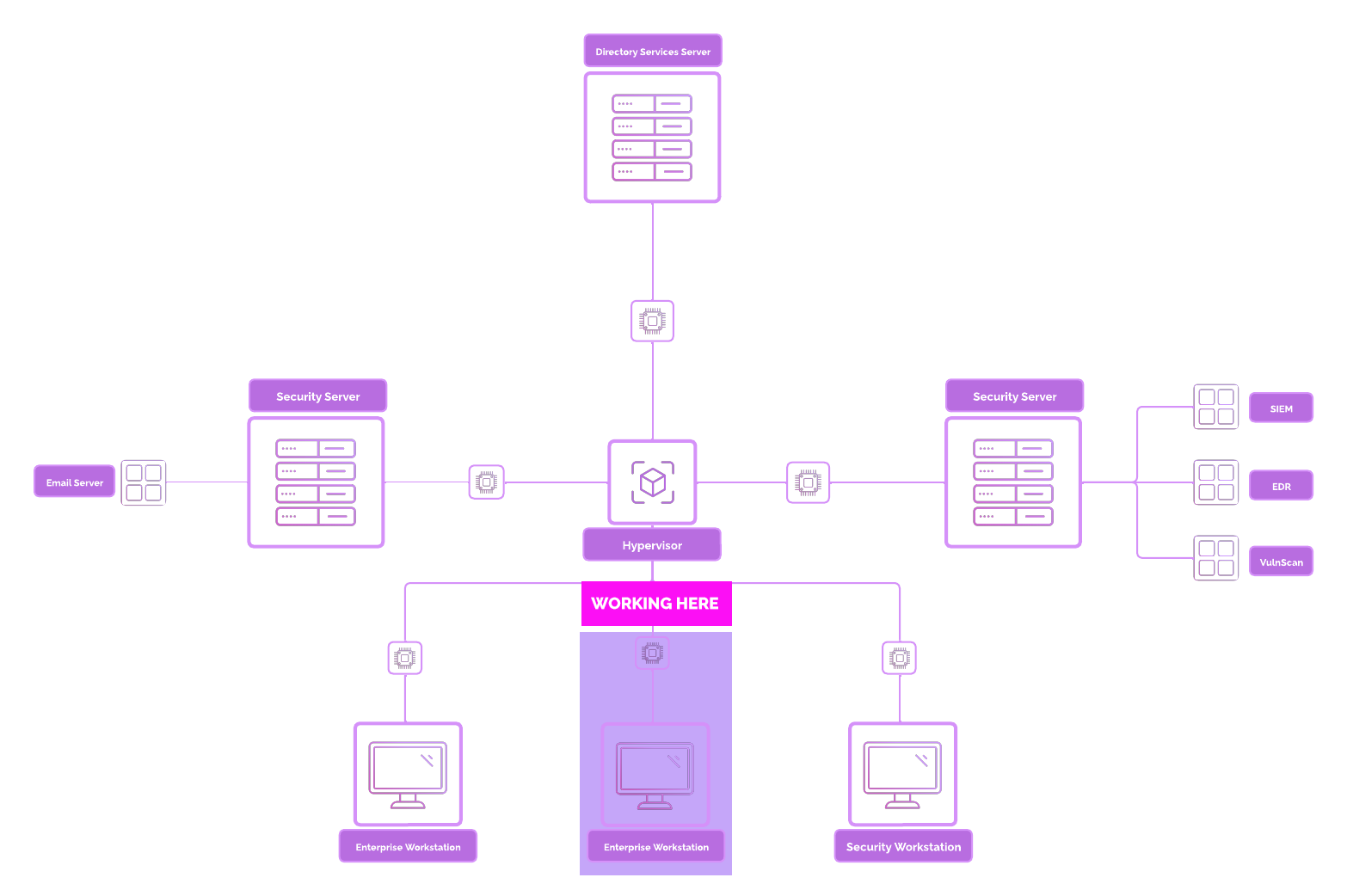

Network Topology

Base Layout
(Click to zoom)

Ubuntu Overview

What is Linux & Ubuntu?

Linux: Linux is an open-source operating system kernel that serves as the foundation for various distributions (distros) like Ubuntu, Debian, Fedora, and CentOS. It is known for its flexibility, stability, and security, making it a popular choice for servers, desktops, and embedded systems.

Ubuntu: Ubuntu is a Linux distribution based on Debian, developed and maintained by Canonical. It is designed to be user-friendly, making it a go-to choice for beginners while remaining robust enough for advanced users and enterprise environments. Ubuntu is available in various editions: Desktop, Server, and Core (for IoT).

Key Features of Ubuntu:

  • Open-Source: Free to use, modify, and distribute.
  • Wide Compatibility: Supports a variety of hardware and software.
  • Active Community: Backed by a vast community and regular updates.

How is Linux used?

Linux is utilized across various fields for diverse purposes:

  1. Servers and Hosting

    • Web Servers: Leading choice for hosting websites, applications, and databases using services like Apache, Nginx, and MySQL.
    • Cloud Computing: Powers major cloud platforms like AWS, Google Cloud, and Azure.
  2. Development and Testing

    • Popular among developers for its built-in tools, package management (APT), and scripting capabilities.
    • Ideal for DevOps workflows with support for Docker, Kubernetes, and CI/CD pipelines.

Security Implications

While Linux and Ubuntu are appear to be more secure than many other operating systems, they are not immune to threats.

Understanding their security implications is crucial for safe and effective usage.

Common Threats

  1. Privilege Escalation

    • Misconfigured sudo or excessive permissions can allow attackers to gain root access.
  2. Unpatched Vulnerabilities

    • Delays in applying updates can leave systems exposed to exploits like kernel vulnerabilities.
  3. Weak SSH Configurations

    • Using default settings or weak passwords can lead to brute-force attacks.
  4. Malware and Rootkits

    • Though less common, Linux-specific malware and rootkits exist and can compromise systems.
  5. Supply Chain Attacks

    • Threats can arise from malicious packages or software downloaded from untrusted sources.

Setup VM

Go to "Machine" ➔ "New...".

Base Layout
(Click to zoom)

Type in VM Name, select VM Folder (ideally your external hard drive), OS of "Linux", and OS Distribution of "Ubuntu", keep OS Version to Ubuntu (64-bit).

Base Layout
(Click to zoom)

Before clicking finish, navigate to the third tab, upgrade to at least 4 GBs of RAM which is 4096 MB and 2 CPUs.

Then select finish.

Base Layout
(Click to zoom)

Select virtual machine, select "Settings".

Then Go to "Expert", "Display", upgrade to 128 MB Video Memory and crucially upgrade Graphics Controller to VBoxSVGA.

Base Layout
(Click to zoom)

Go to "Network", select "NAT Network", project-x-network.

Base Layout
(Click to zoom)

And optionally, enable the clipboard by going to "General", Shared Clipboard as Bidirectional. Save the config.

Base Layout
(Click to zoom)

Power On VM.

Select "Other", then find your ISO image".

Base Layout
(Click to zoom)

This will power on.

Setup Ubuntu

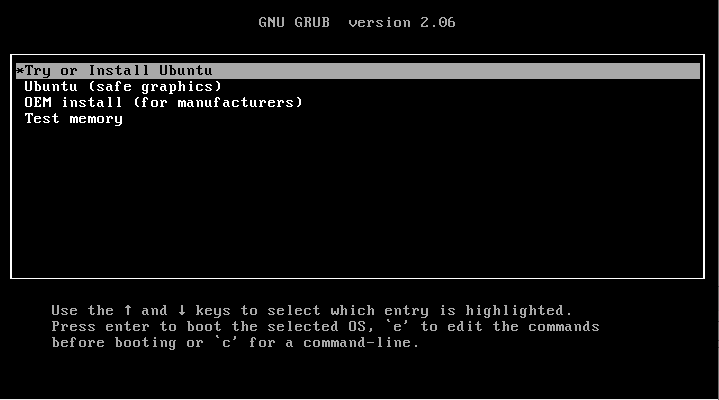

Hit “Enter”.

Base Layout
(Click to zoom)

Select language.

Base Layout
(Click to zoom)

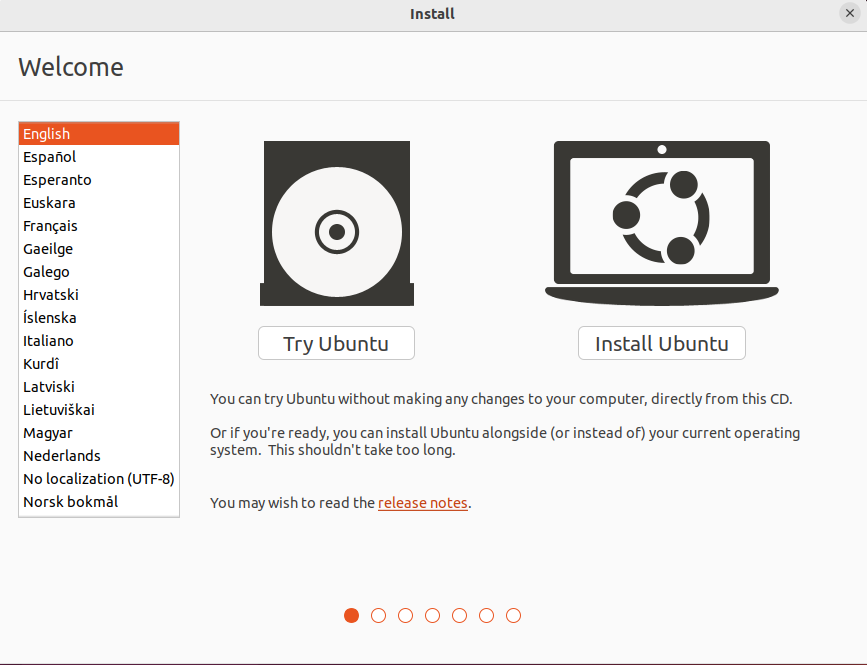

Proceed through all windows until, Choose “Install Ubuntu".

Base Layout
(Click to zoom)

Proceed with "interactive installation".

Base Layout
(Click to zoom)

Choose "default selection" for Apps.

Base Layout
(Click to zoom)

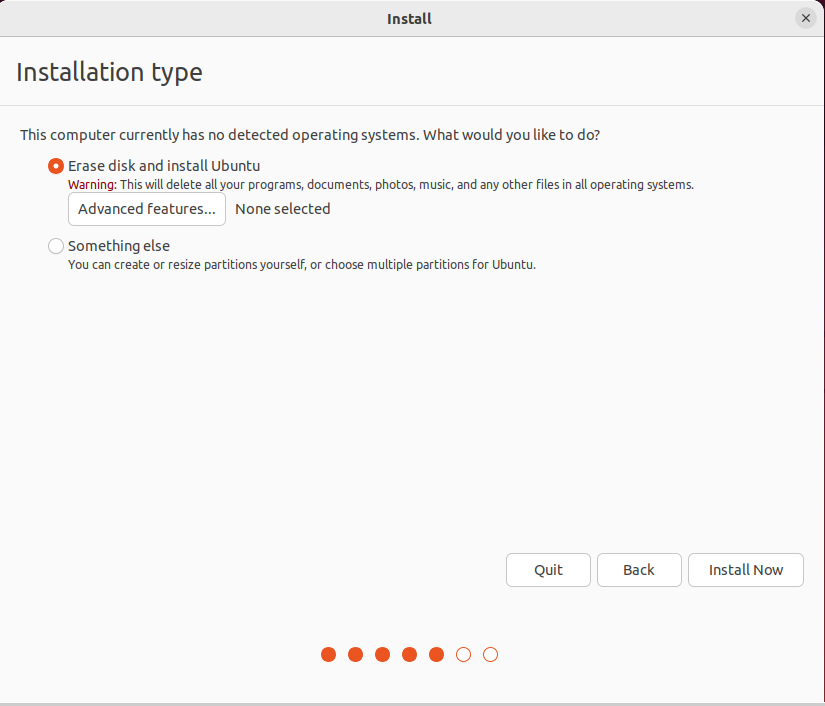

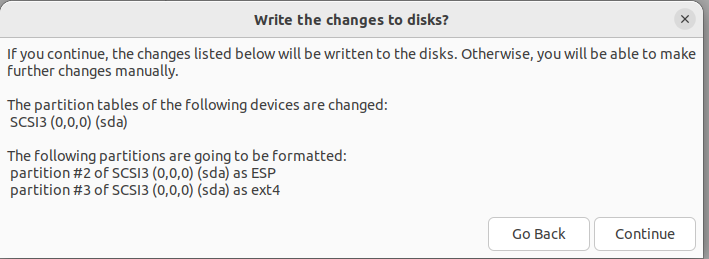

Go all the way through until "Erase disk and install Ubuntu".

Base Layout
(Click to zoom)

Select "no encryption" on the next window.

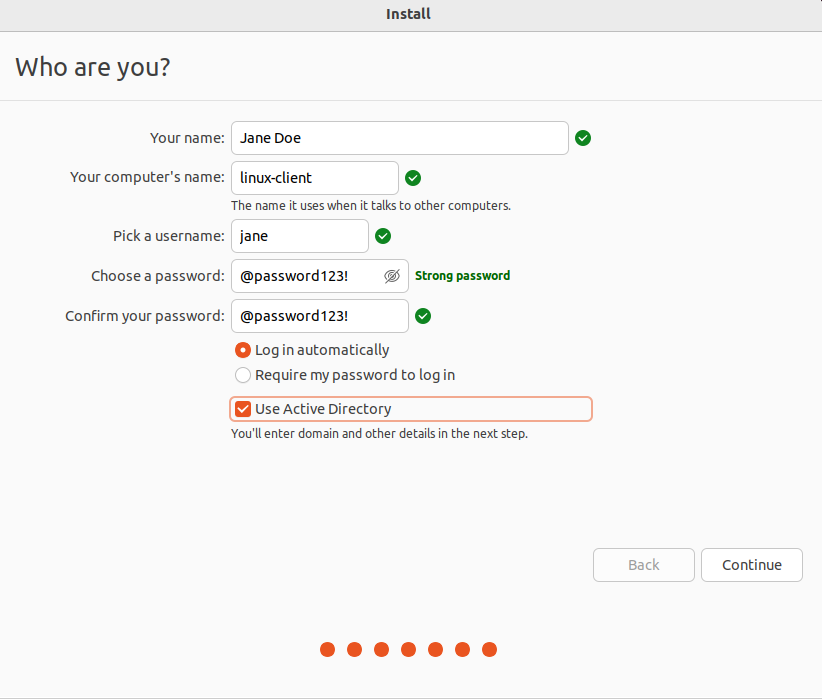

Type in the following details for "Create your account".

Base Layout
(Click to zoom)

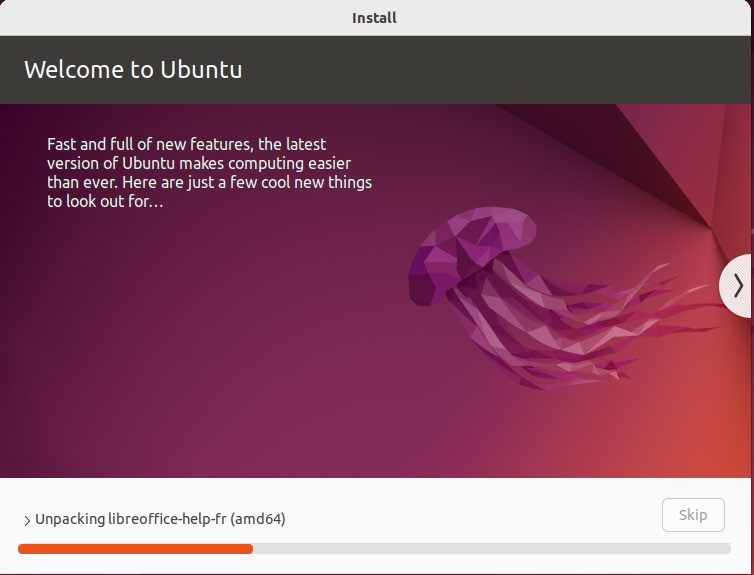

Wait for Ubuntu to install. Let the virtual machine restart by pressing "Restart now".

Base Layout
(Click to zoom)

Press “Enter” when it says to remove the installation medium.

Base Layout
(Click to zoom)

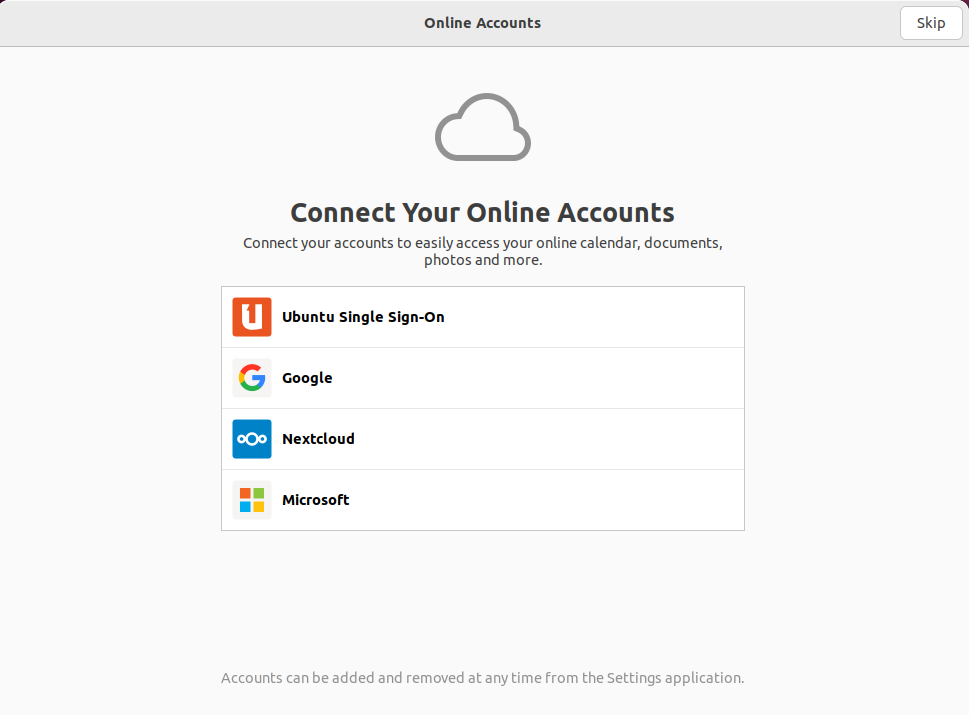

Once the machine restarts, another small wizard will pop up.

Go through the wizard with all defaults. Unselect “Location Services" if selected. Thanks Ubuntu for not having an opt-in default...

Base Layout
(Click to zoom)

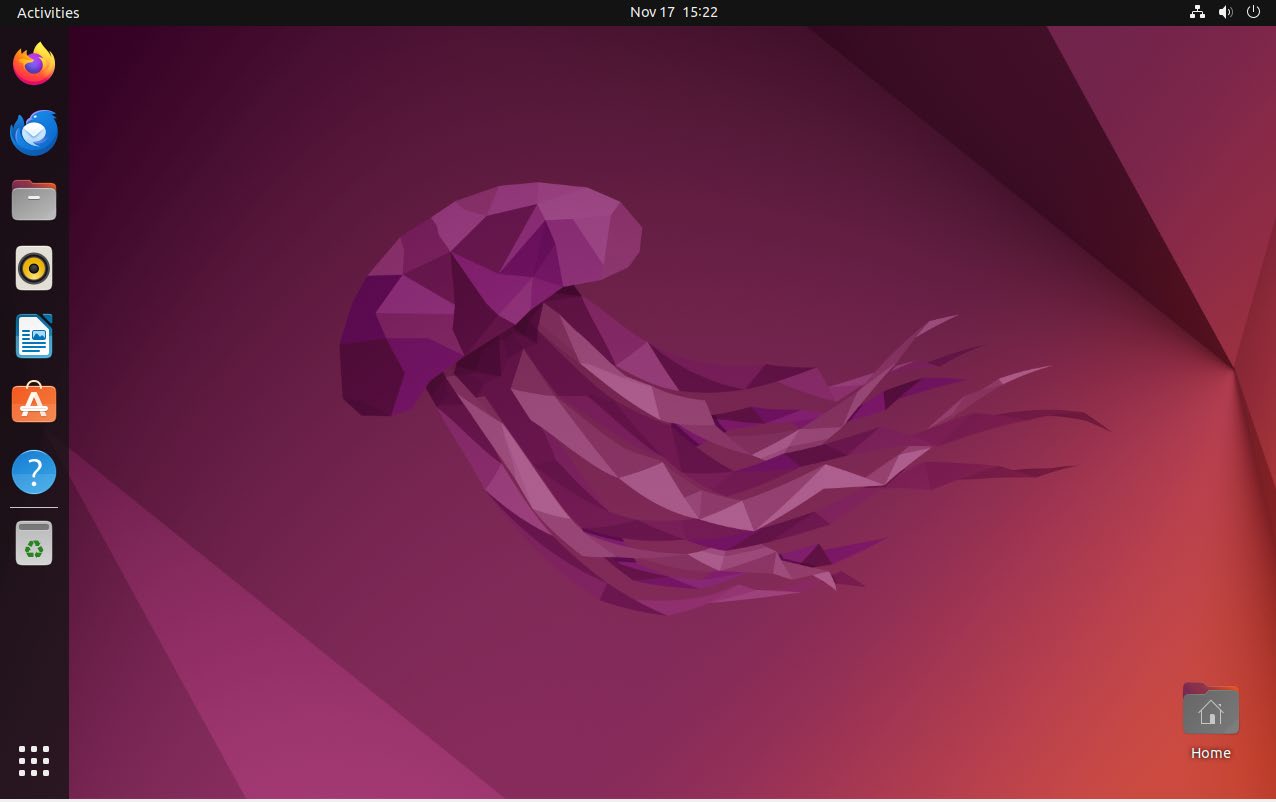

Success!

Base Layout
(Click to zoom)

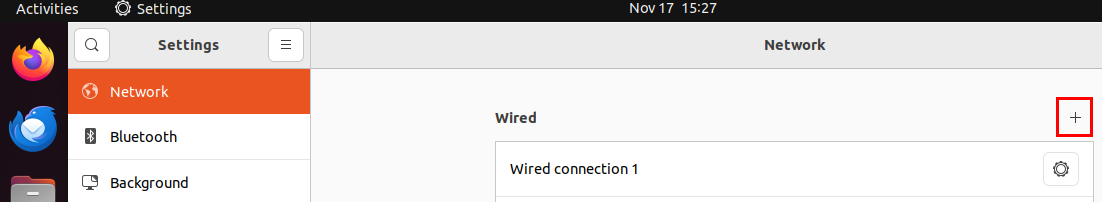

Go to “Settings” ➔ “Network”. Choose “+” symbol to add a new network.

Base Layout
(Click to zoom)

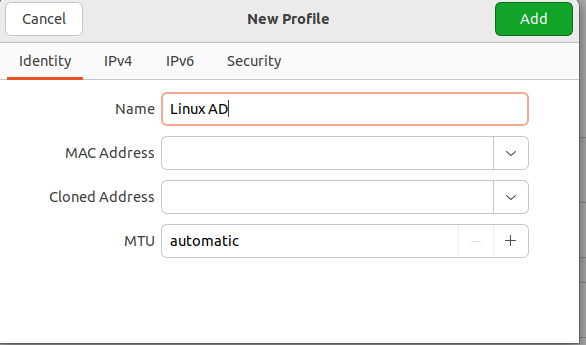

Name the new Wired connection “Linux AD”. Then navigate to “IPv4”.

Base Layout
(Click to zoom)

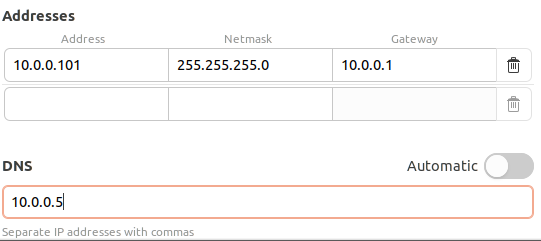

Add the following information to set a static IP address and the Domain Controller as the DNS.

Select the “Add” button to save changes.

Base Layout
(Click to zoom)

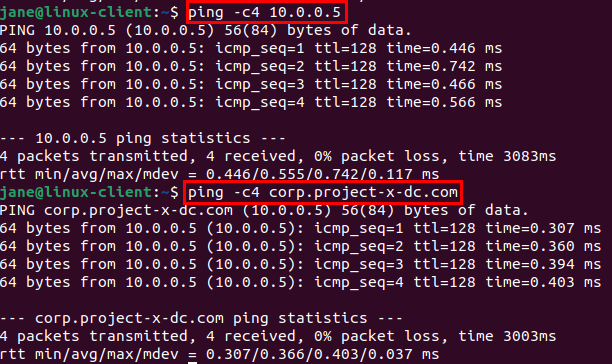

Make sure the Linux Desktop can reach the Windows Server Domain Controller.

Base Layout
(Click to zoom)

👉 You may not be able to ping corp.project-x-dc.com, that is okay at this time.

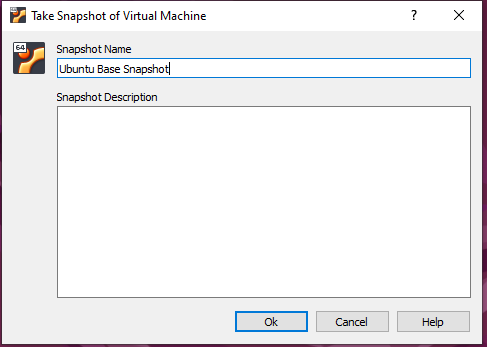

📷 Take Snapshot!

Base Layout
(Click to zoom)

Connect Ubuntu Desktop to Active Directory

Since Ubuntu (and Linux-native operating systems) are not native to the Microsoft ecosystem. Connecting Ubuntu (and Debian-based systems) to Active Directory can be accomplished in a couple ways. The easiest way is to connect Ubuntu to Active Directory with realmd and SSSD (System Security Services Daemon).

Samba Winbind can also be used to join Linux systems if realmd / SSSD is not working.

Note

Currently realmd and SSSD integration does not work for Windows Server 2025 and Debian/Ubuntu-based systems.

About SSSD / Realmd

System Security Services Daemon (SSSD): A service on Linux systems that provides a central access point for identity management and authentication. When connecting a Linux system to Active Directory (AD), SSSD allows for the integration by acting as an intermediary between the Linux system and AD needing to know what files should be edited.

realmd: A tool that simplifies the process of joining Linux machines to AD domains. It automates the discovery, configuration, and enrollment of Linux systems in Active Directory, making it easier to integrate Linux systems into existing AD environments. Realmd is especially useful for administrators because it manages the complexities of setting up Kerberos, configuring LDAP settings, and ensuring proper authentication protocols.

About Samba Winbind

Samba Winbind: A component of the Samba suite that allows Linux systems to authenticate users against Windows Active Directory (AD) and integrate with Windows network environments. Is a more direct integration, especially useful for legacy systems and environments where tight compatibility with Windows protocols is necessary. It’s often preferred when working in older Windows Server environments or where native Samba compatibility is crucial.

Realmd + SSSD

Note

Do not use this method right now. Scroll down to Winbind. This is informational only.

Open a new terminal session. Update the system with:

sudo apt update

Adding the following under the [Time] block

sudo nano /etc/systemd/timesyncd.conf
Base Layout
(Click to zoom)

Install the necessary packages:

sudo apt install realmd sssd sssd-tools samba-common krb5-user packagekit libnss-sss libpam-sss adcli samba-common-bin
Base Layout
(Click to zoom)

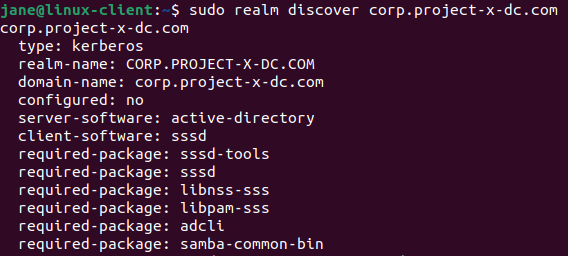

Use the realm command to discover the domain.

Base Layout
(Click to zoom)

Enter the following command, enter the Administrator password:

sudo realm join --verbose --user=Administrator corp.project-xdc.com

If no output is shown in the console, then the VM has been connected. Enter the following command to confirm:

realm list

Samba Winbind

Open a new terminal session. Update the system with:

sudo apt update

Install the necessary packages

sudo apt -y install winbind libpam-winbind libnss-winbind krb5-config samba-dsdb-modules samba-vfs-modules

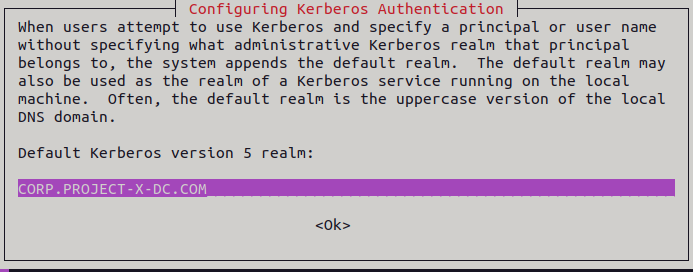

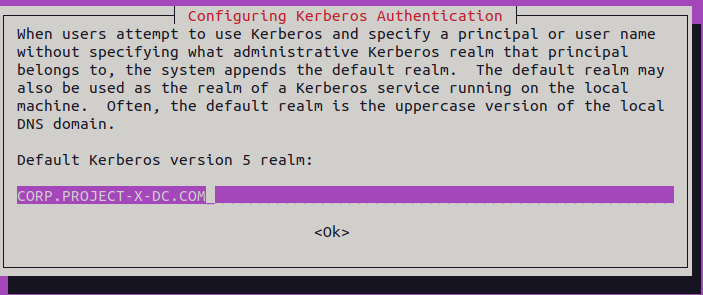

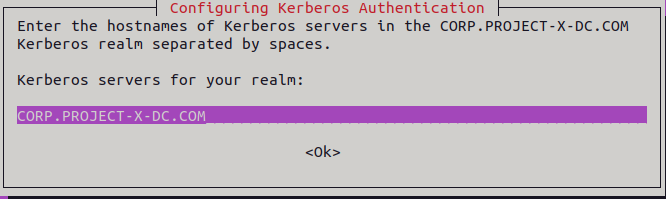

A few dialogue boxes will appear. Add CORP.PROJECT-X-DC.COM all capatialized inside these boxes.

Base Layout
(Click to zoom)
Base Layout
(Click to zoom)

Move the smb.conf file to smb.conf.org. - We are doing this to replace the contents of smb.conf with our configurations instead.

sudo mv /etc/samba/smb.conf /etc/samba/smb.conf.org

Create and open the smb.conf file with Nano.

sudo nano /etc/samba/smb.conf

Replace realm and workgroup with the following:

[global]
  kerberos method = secrets and keytab
  realm = CORP.PROJECT-X-DC.COM
  workgroup = CORP
  security = ads
  template shell = /bin/bash
  winbind enum groups = Yes
  winbind enum users = Yes
  winbind separator = +
  idmap config * : rangesize = 1000000
  idmap config * : range = 1000000-19999999
  idmap config * : backend = autorid
👆 Take note of that spacing above, it's two spaces.

Exit Nano with CTRL + X, then Y key, Enter Key.

Confirm passwd and group blocks have winbind set as a value. Add the winbind value if needed.

sudo nano /etc/nsswitch.conf
Base Layout
(Click to zoom)

On Ubuntu, every user that has an interactive logon to the system needs a home directory. For domain users, we need to set this before a user is able to successfully logon and start working.

Issue the following command:

sudo pam-auth-update

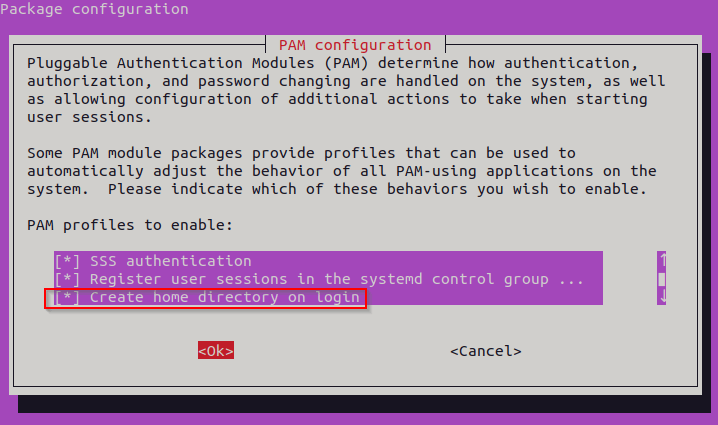

Scroll down up to the point where it states: "Create home directory on login". Use the space bar to select with the *, hit the tab key to “OK” and hit Enter.

Base Layout
(Click to zoom)

Kudos to Michael Waterman for the screenshot!

Change DNS settings to refer to AD.

sudo nano /etc/resolv.conf
Base Layout
(Click to zoom)

Join the domain with Administrator:

sudo net ads join -U Administrator

Enter the Domain Admin password of @Deeboodah1!

Restart winbind:

systemctl restart winbind

Enter Jane Doe's password of @password123!

Get Active Directory services information listing.

net ads info

List all available users

wbinfo -u
Base Layout
(Click to zoom)

Let’s create Jane’s AD account in our Domain Controller.

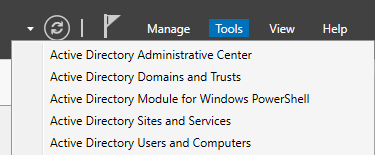

Go to Server Manager, then on the top right “Tools” ➔ “Active Directory Users and Computers”

Base Layout
(Click to zoom)

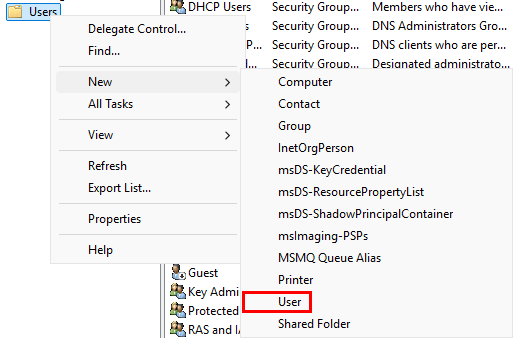

Navigate to the “Users” folder. Right-click, then go to “New” ➔ “User”

Base Layout
(Click to zoom)

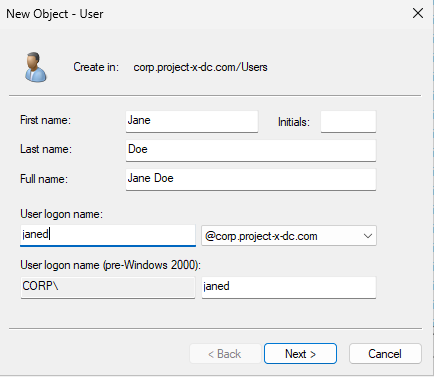

Add the following information. Make sure Jane’s username is janed@corp.project-xdc.com.

Base Layout
(Click to zoom)

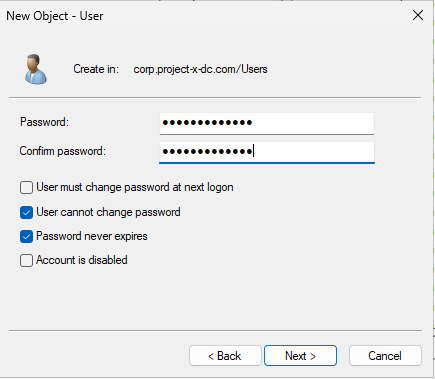

Set Jane’s password (@password123!).

👉 Refer to the “Project Overview” guide for more information on default usernames and passwords.

Base Layout
(Click to zoom)

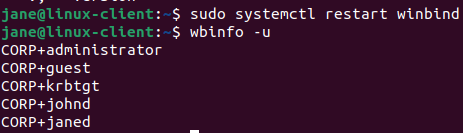

Clear the winbind cache by restarting the service, then see the changes reflected.

sudo systemctl restart winbind
wbinfo -u
Base Layout
(Click to zoom)

Login as janed:

sudo login
Base Layout
(Click to zoom)

Issue an id command to view status:

id
Success!

Base Layout
(Click to zoom)

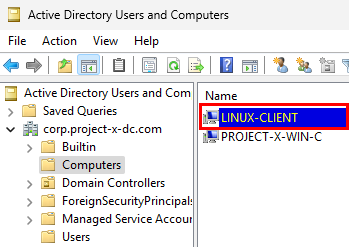

Going back to the Server Manager, we should see LINUX-CLIENT under the “Computers” folder.

Base Layout
(Click to zoom)

Success!

📷 Take (another) Snapshot!
