Deploy the threat intelligence dashboard (Fly.io + Neon)

Prerequisites

• Git on your local machine and access to complete-threat-intel-app (includes .github/workflows/deploy-fly.yml, Dockerfile, fly.toml).

Network topology

(Click to zoom)

Running the Web Threat Intelligence Dashboard, or really anything on AWS (or Big Cloud), on for 24/7 will result in costs you do not need to be paying for.

This guide replaces the EC2 instance stack layers with:

Layer	Before	After (budget-friendly)
App (Astro, Tailwind, Node SSR)	EC2	Fly.io - Pay for small VMs
Database	PostgreSQL on EC2	Neon - Serverless Postgres with the free tier
Feed ingest	Lambda in VPC ➔ EC2 private IP	Lambda without VPC (or with NAT) ➔ Neon over TLS

You keep the same application code (complete-threat-intel-app), the same dashboard.panel_feed schema, and the same S3 ➔ ingest Lambda pipeline. Only the host and connection targets change.

Order to Complete In

1. Neon: Create database and schema.
2. Fly.io: Deploy the Astro app.
3. Lambdas: Point ingest at Neon.
4. GitHub Actions: Automate deploys to Fly.

Prerequisites

• complete-threat-intel-app from course exercise files (Astro 5, @astrojs/node, Tailwind, React/ECharts).
• CA101/WA101 Lambdas: public-threat-intelligence-feed-parser and private-db-threat-intelligence-feed-pull created and functional.
• A GitHub account (for CI/CD in the next guide).
• Local tools: Node.js 22, Git, and (for Fly) flyctl.

Neon runs the same commands in its SQL editor or psql as we did in the PostgreSQL on EC2.

Network topology (after migration)

Browser
  ➔ Fly.io (HTTPS) ➔ Astro SSR (@astrojs/node)
        ➔ Neon Postgres (TLS, dashboard.panel_feed)

EventBridge ➔ public-threat-intelligence-feed-parser ➔ S3 (.json)
  ➔ private-db-threat-intelligence-feed-pull ➔ Neon (INSERT)

The public parser Lambda is unchanged (still writes S3). Only the ingest Lambda and the dashboard change their database endpoint.

---

Part 1: Neon (PostgreSQL)

1.1 Create a Neon project

1. Sign up at neon.tech.
2. New project — pick a region close to you (e.g. us-east-2 / AWS East).
3. Note the connection details on the dashboard:
4. Host (e.g. ep-xxxx.us-east-1.aws.neon.tech)
5. Database (default is often neondb; you can rename or create neondb)
6. User / password
7. SSL: required (sslmode=require)

Neon provides a single connection string such as:

postgresql://neondb_owner:YOUR_PASSWORD@ep-xxxx.us-east-1.aws.neon.tech/neondb?sslmode=require

Store credentials in a password manager.

1.2 Create schema and users

Open Neon Console ➔ SQL Editor (or connect with psql using the connection string from the console).

Run the same object definitions as the EC2 guide (Create Application Database Objects), adapted for Neon:

-- Connect as the database owner (neondb_owner). It already owns the
-- database and has full privileges, so no extra role or grants are needed.

CREATE SCHEMA IF NOT EXISTS dashboard AUTHORIZATION neondb_owner;

CREATE TABLE IF NOT EXISTS dashboard.panel_feed (
    id bigserial PRIMARY KEY,
    panel_name text NOT NULL,
    source_feed text NOT NULL,
    payload jsonb NOT NULL,
    collected_at timestamptz NOT NULL DEFAULT now()
);

CREATE INDEX IF NOT EXISTS idx_panel_feed_name_collected
    ON dashboard.panel_feed (panel_name, collected_at DESC);

1.3 Seed panel rows

INSERT INTO dashboard.panel_feed (panel_name, source_feed, payload)
VALUES
('security_news_rss', 'placeholder', '{"items": []}'),
('top_100_domains', 'placeholder', '{"items": []}'),
('top_ips', 'placeholder', '{"items": []}'),
('top_10_countries_by_ip', 'placeholder', '{"items": []}'),
('top_malware_hashes', 'placeholder', '{"items": []}'),
('top_iocs', 'placeholder', '{"items": []}');

1.4 Verify from your laptop

Using psql or any SQL client with SSL required:

psql "postgresql://neondb_owner:YOUR_PASSWORD@ep-xxxx.region.aws.neon.tech/neondb?sslmode=require" \
  -c "SELECT COUNT(*) FROM dashboard.panel_feed;"

Expect 6 rows after seeding.

1.5 (Optional) Migrate existing data from EC2

If you already have live rows on EC2 Postgres:

# On a machine that can reach EC2 Postgres (SSH tunnel or temporary SG rule)
pg_dump -h EC2_HOST -U projectx_dbadmin -d neondb \
  --schema=dashboard --no-owner --no-acl -f panel_feed_dump.sql

# Restore into Neon (connection string from console)
psql "postgresql://neondb_owner:PASSWORD@ep-xxxx.neon.tech/neondb?sslmode=require" \
  -f panel_feed_dump.sql

Skip this if you are fine re-seeding and letting Lambdas repopulate panels.

1.6 App environment variables (Fly and local)

The Astro app reads these in src/lib/db.ts (same names as EC2 .env):

Variable	Example	Notes
DB_HOST	ep-xxxx.us-east-1.aws.neon.tech	Neon host only
DB_PORT	5432	Default
DB_NAME	neondb
DB_USER	neondb_owner
DB_PASSWORD	(secret)
DB_SSLMODE	require	Do not use disable for Neon

Local dev .env:

DB_HOST=ep-xxxx.us-east-2.aws.neon.tech
DB_PORT=5432
DB_NAME=neondb
DB_USER=neondb_owner
DB_PASSWORD=your-neon-password
DB_SSLMODE=require

Part 2: Fly.io (Astro dashboard)

The dashboard is server-rendered (output: 'server', @astrojs/node standalone). Fly runs it as a container built from Dockerfile in the exercise repo.

2.1 Install flyctl

Follow Install flyctl. Sign up / log in:

fly auth login

2.2 Add Fly files to your repo

Copy from exercise-files/web-attacks-101/complete-threat-intel-app into your GitHub repo root:

File	Purpose
Dockerfile	Multi-stage Node 22 image: npm run build in Docker, then node dist/server/entry.mjs on port 8080
fly.toml	App name, region, HTTP service, 512MB VM
.github/workflows/deploy-fly.yml	CI deploy (see implement_github_ci_cd.md)

Edit fly.toml and set a globally unique app name:

app = "your-unique-threat-intel-dashboard"

2.3 First deploy (manual)

From the repo root (the folder that contains Dockerfile and fly.toml):

fly apps create your-unique-threat-intel-dashboard   # skip if fly launch creates it
fly deploy

The Dockerfile builds the Astro app inside the image (npm run build in a build stage). You do not need a local dist/ folder for deploy.

Optional — build locally first to verify the app before shipping:

npm ci
npm run build
npm run preview

On first deploy, Fly builds the Docker image and assigns a URL like:

https://your-unique-threat-intel-dashboard.fly.dev

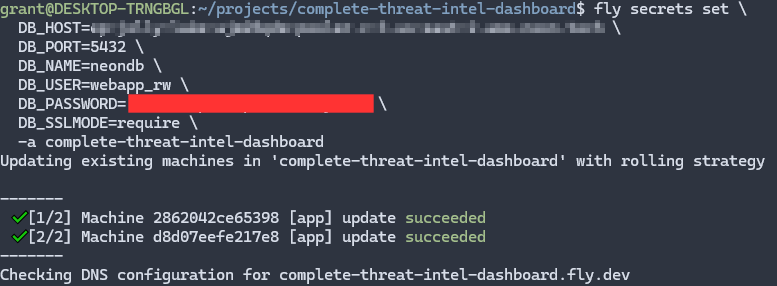

2.4 Set database secrets on Fly

Do not commit .env. Set secrets on the Fly app (runtime env for the container):

fly secrets set \
  DB_HOST=ep-xxxx.us-east-2.aws.neon.tech \
  DB_PORT=5432 \
  DB_NAME=neondb \
  DB_USER=neondb_owner \
  DB_PASSWORD='your-neon-password' \
  DB_SSLMODE=require \
  -a your-unique-threat-intel-dashboard

(Click to zoom)

Fly restarts machines when secrets change. Open the app URL; you should see the dashboard (panels may be empty until Lambdas run).

2.5 Cost-oriented Fly settings

fly.toml in the exercise repo uses:

• auto_stop_machines = "stop" — machines stop when idle (saves money).
• min_machines_running = 0 — no always-on charge when nobody visits.
• memory = "512mb" — enough for Node SSR + ECharts.

Cold starts add a few seconds on first request after idle—acceptable for a portfolio dashboard.

2.6 Custom domain (optional)

Fly can issue certificates for your hostname:

fly certs add dashboard.yourdomain.com -a your-unique-threat-intel-dashboard

Add the CNAME Fly shows in your DNS provider (Cloudflare, etc.). Details: Fly custom domains.

See the Register Domain guide to register your domain name and add the application.

Part 3: Retrofit feed Lambdas for Neon

public-threat-intelligence-feed-parser — no change (still fetches feeds and writes S3).

private-db-threat-intelligence-feed-pull — update to write Neon instead of EC2 Postgres.

3.1 Why networking changes

On EC2, ingest ran in a VPC private subnet to reach Postgres on a private IP. Neon is reachable over the public internet with TLS, so the ingest Lambda can run without a VPC or stay in a VPC only if you have a NAT gateway path to the internet (same as reaching Neon).

Remove the VPC configuration from the ingest function unless you have a specific reason to keep it.

3.2 Update Lambda environment variables

In Lambda ➔ Configuration ➔ Environment variables, remove the old EC2-specific names and set either a single connection string or discrete variables (supported by the updated exercise db.py):

Option A — connection string (recommended)

Variable	Value
NEON_DATABASE_URL	postgresql://neondb_owner:PASSWORD@ep-xxxx.region.aws.neon.tech/neondb?sslmode=require

Option B — discrete variables

Variable	Value
DB_HOST	Neon host (ep-xxxx...neon.tech)
DB_NAME	neondb
DB_USER	neondb_owner
DB_PASSWORD	Neon password
DB_PORT	5432
DB_SSLMODE	require

Legacy EC2 names (EC2_ENDPOINT, EC2_USERNAME, …) still work for students finishing the original CA101 path; prefer Neon names for new deploys.

3.3 Redeploy ingest code

Use the latest private-db-threat-intelligence-feed-pull from:

exercise-files/web-attacks-101/threat_intelligence_lambda_functions/private-db-threat-intelligence-feed-pull/

Rebuild the zip if you changed db.py locally, upload to Lambda, and confirm handler lambda_function.lambda_handler.

3.4 Security group / VPC cleanup

1. Lambda ➔ Configuration ➔ VPC ➔ Edit ➔ Remove VPC.
2. Wait for ENI teardown to finish.
3. You no longer need Postgres 5432 open from projectx-lambda-feed-SG to the EC2 web server for ingest (Neon uses TLS on Neon’s endpoint).

3.5 Test ingest

1. Run public-threat-intelligence-feed-parser with panel_key: security_news_rss (writes S3).
2. Confirm S3 trigger fires private-db-threat-intelligence-feed-pull.
3. In Neon SQL Editor:

SELECT panel_name, collected_at
FROM dashboard.panel_feed
ORDER BY collected_at DESC
LIMIT 10;

1. Refresh the Fly dashboard URL — Security News should show live items.

Troubleshooting

We have left this AI overview summary to check if things are not going right, run through this checklist.

Symptom	Likely cause
Lambda timeout on ingest	VPC still attached without NAT; remove VPC or add NAT
SSL connection required	Set DB_SSLMODE=require or use ?sslmode=require in NEON_DATABASE_URL
password authentication failed	Wrong user/password; use neondb_owner and Neon’s current password
Dashboard empty, DB has rows	Fly secrets missing/wrong DB_*; run fly secrets list
permission denied for schema dashboard	Re-run GRANTs from 1.2
Docker COPY dist: /dist not found	Old single-stage Dockerfile expected a pre-built dist/; dist/client and dist/server are gitignored, so Fly's remote builder never receives them. Use the course multi-stage Dockerfile (build runs inside Docker) and redeploy.

---

Part 4: End-to-end checklist

• [ ] Neon project created; dashboard.panel_feed exists with seed rows
• [ ] psql / SQL editor count returns 6+ after ingest tests
• [ ] Fly app deploys; fly secrets set for all DB_* variables
• [ ] https://YOUR-APP.fly.dev loads dashboard
• [ ] Ingest Lambda uses NEON_DATABASE_URL or DB_*; VPC removed
• [ ] S3 ➔ ingest ➔ Neon ➔ Fly UI verified for at least security_news_rss
• [ ] GitHub Actions deploys on push to main (implement_github_ci_cd.md)
• [ ] EC2 dashboard stopped when no longer needed

---

Reference files (course repo)

Path	Role
exercise-files/web-attacks-101/complete-threat-intel-app/	Astro app, Dockerfile, fly.toml, deploy-fly.yml
exercise-files/web-attacks-101/complete-threat-intel-app/src/lib/db.ts	Postgres client (DB_* env)
exercise-files/web-attacks-101/threat_intelligence_lambda_functions/private-db-threat-intelligence-feed-pull/db.py	Ingest; Neon + optional EC2 env
PostgreSQL on EC2	Canonical schema reference
Private DB threat intelligence feed pull	Lambda console steps (updated for Neon)

---

Related guides

• Deploy CI/CD Using Github — GitHub Actions ➔ Fly.io
• Optional navigation menu — header links on the dashboard
• Dashboard panel threat intelligence feeds — all six feed modules
• Register a domain — DNS (use Fly CNAME when on Fly)
