Corporate Server - Provision & Setup Ubuntu Desktop 26.04

Prerequisites

  • VirtualBox or VMware Workstaiton Pro installed.
  • [project-x-linux-client] has been configured.
  • Windows Server 2025 with Active Directory Domain Services (ADDS) configured.

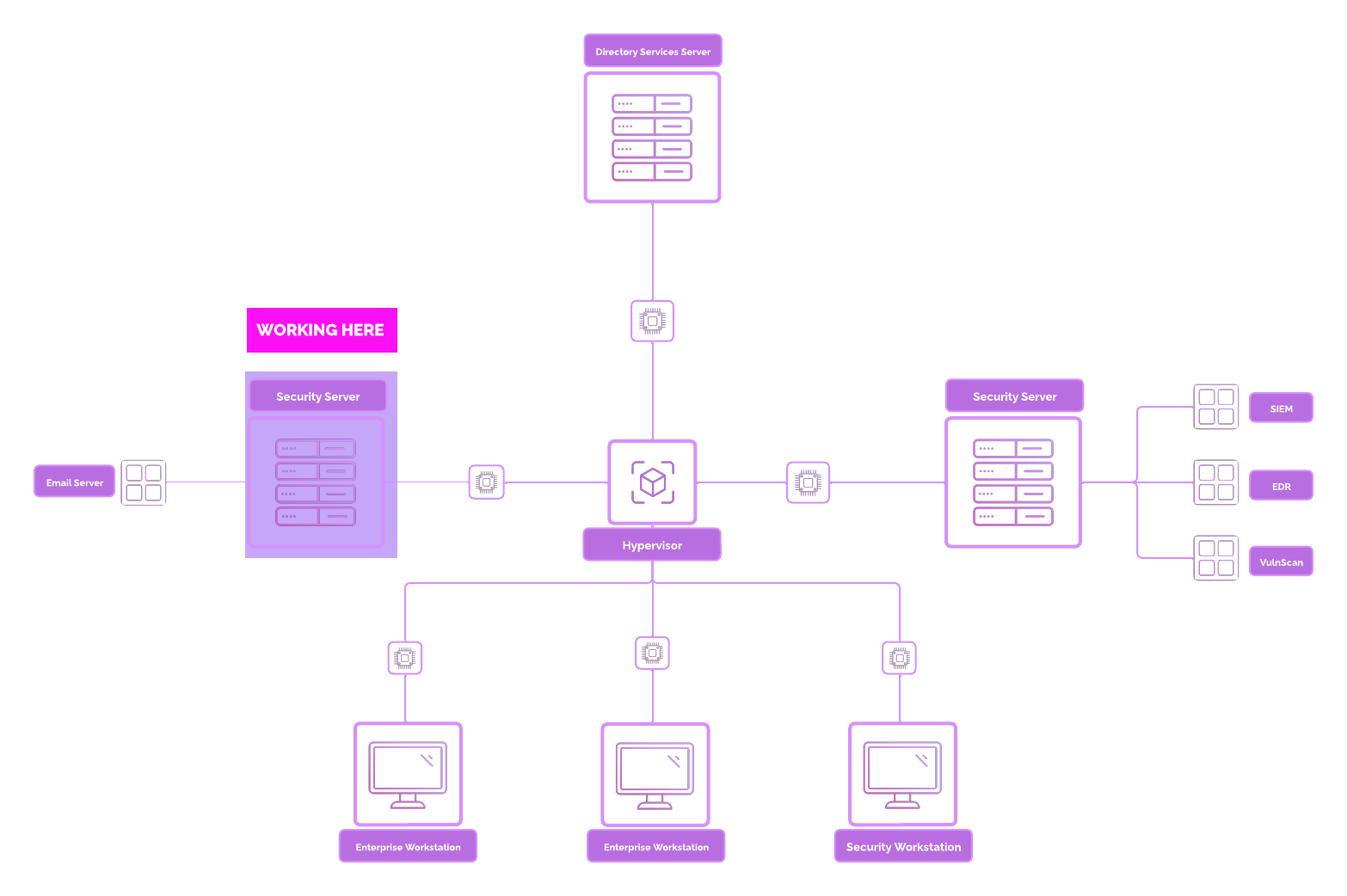

Network Topology

Base Layout
(Click to zoom)

Corporate Server (CORP-SVR) Overview

Overview

Business and enterprise environments will have dedicated servers designated for different purposes. Servers empower the backend processing of user and service requests.

Depending on the size and scale of a company, they may have hundreds, if not thousands of dedicated servers.

Running on-premise, where they must manage and operate the server from the hardware to application level, or in the cloud, where parts of the process is managed from the cloud provider.

"Dedicated Server" here can mean almost anything.

Examples of Dedicated Servers in the context of a business environment include:

  • Licensing Server: Issue and maintain updated software licenses to hosts. A workstation can retrieve a request licenses from this server. This empowers automation.

  • Internal File Server: Share files across the business environment. These types of servers were often implemented with a software program such as Microsoft Sharepoint. This isn't as common today with the move to cloud-based services such as Microsoft 365 or Google Workspace.

  • Database Server: Used to store and retrieve information.

  • VPN Servers: Host a VPN service for workstations to log into. If you have used a consumer grade VPN before, you log into one of the VPN servers managed the the VPN provider.

  • Jumpbox: Also referred to as bastion host. These servers act as an entry-point into an isolated environment. Jumphosts can be used as a security mechanism to restrict access to the internal environment.

We are going to provision and create a dedicated server called [project-x-corp-svr].

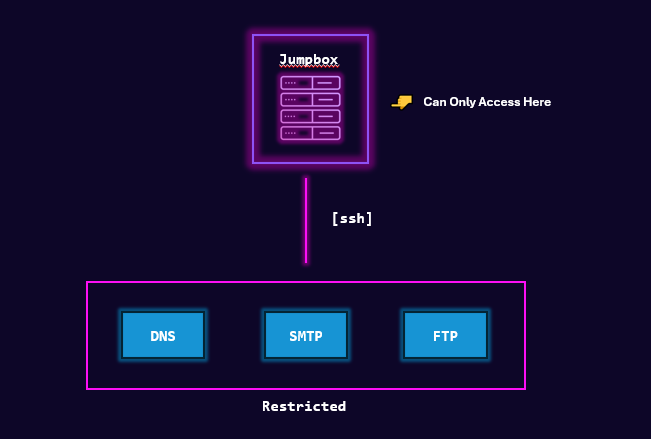

This server is going to act as a Jumpbox. From this server will be provision and access other types of services such as FTP, DNS, and email.

Without access to the Jumpbox, all other services such as FTP, DNS, and email will not be accessible, meaning we won't be able to manage, upgrade, or access these services. This is intentional. Jumpboxes can be created to restrict access, minimizing the attack surface. This does come with some security implications, as you can see below.

Base Layout
(Click to zoom)

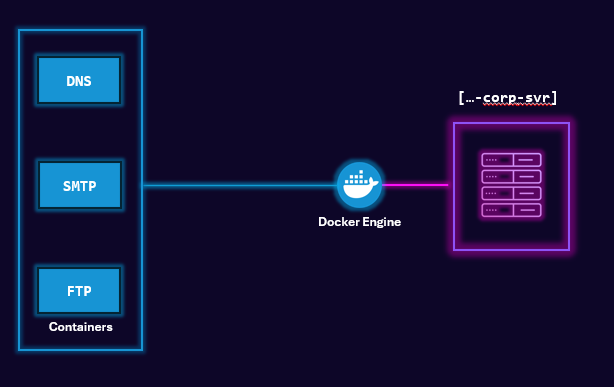

These internal "servers" will be containers. We could use additional VMs, however, this would mean more dedicated storage, compute, and other resources. We ain't got resources for that.

Base Layout
(Click to zoom)

Containers are isolated environments that package an application and all its dependencies (binaries, libraries, config files) together. They run from Docker images and share the host OS kernel. So think of containers as VMs, but they run only on one operating system. In our case, this will be Ubuntu 26.04.

Think of a Docker Image as a blueprint or list of instructions. A Docker Image lists what types of software to install, such as a runtime environment like Python.

We will install Docker and the Docker Engine to build containers on our Linux host. A few definitions.

  • Docker: A platform for developing, shipping, and running applications inside lightweight, portable, and isolated environments called containers. It enables consistent application behavior across different environments—from development to production.

  • Docker Engine: The application or program that runs in the background to enable containerization.

In-depth Topology

Base Layout
(Click to zoom)

Security Implications

Running a dedicated server requires proper management. Without proper security controls in place, attackers can break inside (as we will see in our Cyber Attack scenario).

Specifically when we think about Jumpboxes, if a threat actor is able to get access, then they have access to the internal environment.

Additional security considerations: - Single Point of Failure: If compromised, the jumpbox can provide access to the entire internal network it protects.

  • Lateral Movement: If lateral movement protections (e.g., credential guard, firewall rules, endpoint detection) are weak, attackers can move from the jumpbox to other internal systems.

  • Lack of Monitoring: If session activity, command history, or file transfers are not logged or monitored, malicious actions may go unnoticed.

Let's hop in!

For the sake of time and consistency we are going to clone [project-x-linux-client] and change a few settings around.

Clone VM

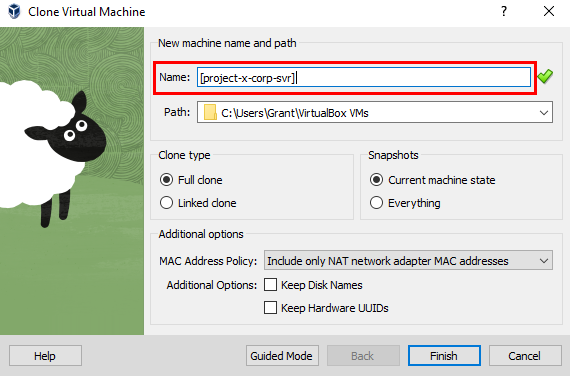

Clone [project-x-linux-client] VM. Rename the VM machine to [project-x-corp-svr].

Base Layout
(Click to zoom)
Base Layout
(Click to zoom)

Wait for the VM to fully clone, then proceed to power the VM on.

Scripted setup

The same clone and the changes in the rest of this guide are in the exercise-files repository, under infrastructure-enterprise-101/. Running the scripts keeps the hostname, address, and account the same on every student machine.

On the host, with [project-x-linux-client] powered off:

.\clone-ubuntu-role.ps1 -Role corp-svr

Power on the clone, log in as janed, and run:

sudo ./setup-ubuntu-role.sh corp-svr --join

That sets the hostname to corp-svr, the address to 10.0.0.8/24, creates project-x-admin, deletes the cloned janed account, installs Docker, and joins corp.project-x-dc.com. Run it again if the VM drifts. The sections below are those same changes, done by hand.

Change the IP address.

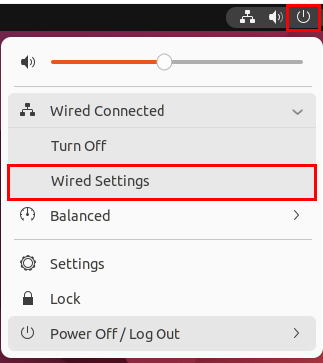

Navigate to the Power Button on the Top Right, select the little gear icon.

Base Layout
(Click to zoom)

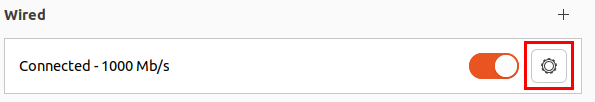

The network page will open. Select into "Linux AD", gear icon.

Base Layout
(Click to zoom)

Go to IPv4 . Change from 10.0.0.101 to 10.0.0.8 --> Apply.

Leave everything else the same.

Base Layout
(Click to zoom)

👉 Refer to the “Project Overview” guide for more information on IP address information.

Change Hostname

Open a new terminal.

Type in the following to edit the name to corp-svr.

sudo hostnamectl set-hostname corp-svr

Base Layout
(Click to zoom)

New User Account

Provision a new dedicated user account.

Supply sudo adduser project-x-admin.

  • Set the password to @password123!
  • Leave all information such as First Name, Last Name, Address blank.
Base Layout
(Click to zoom)

Add project-x-admin to sudo user group. We must do this so we can use sudo under this new account.

sudo usermod -aG sudo project-x-admin

Base Layout
(Click to zoom)

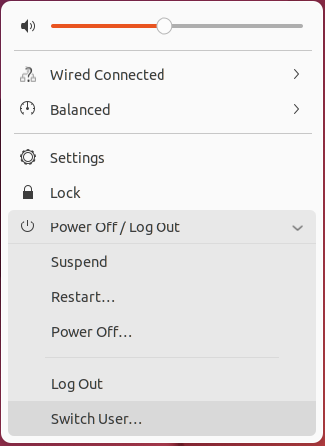

Log out of the janed account associated with the [project-x-linux-client]. Navigate to the top right power point, select "Power Off / Log Out" --> "Switch user".

Base Layout
(Click to zoom)

Login under the project-x-admin account, supply the password: @password123!.

A wizard will walk you through your custom settings for this account, similar to how we set up the workstation account.

You can leave everything default by spamming next, might as well full send it.

Let's delete the janed account.

Open a new terminal.

Type in sudo userdel janed.

This will say there is a process currently open, your process ID, also known as a PID, will showcase a number.

Type in sudo kill PID. Where PID is the number shown on your screen.

You will be kicked out of your account, it will go straight back to the login screen.

Log back into the project-x-admin account.

Your terminal session will still be up.

Type in sudo kill PID. Where PID is the number shown on your screen (X2).

Then type in userdel janed again. You should now be the sole owner of this little VM.

Base Layout
(Click to zoom)

Also while we are here.

Go back up to the power button, gear icon.

Navigate to "Power" and turn "Power Saving" of "Automatic Screen Blank" to Off. No one wants that.

Base Layout
(Click to zoom)

And go back up the power button, log out of your session, you should see your only account for this server.

Base Layout
(Click to zoom)

Add project-x-corp-svr to Active Directory

Let's log into Active Directory. We will use the Administrator account in Active Directory. So we need to associate CORP-SVR to AD's Administrator.

Because we cloned this machine, we should already have some of the previous steps completed for us while configuring the [project-x-linux-client] VM such as installing the necessary dependencies and packages.

We will be using Winbind again, so make sure to make note of this if you used a different connection method to AD when connecting [project-x-linux-client].

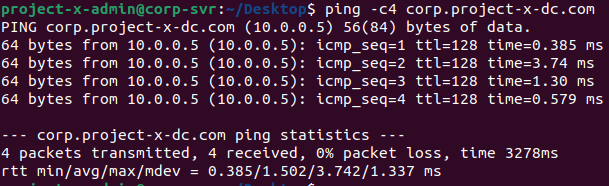

Let's ensure we can ping corp.project-x-dc.com.

Base Layout
(Click to zoom)

Great! Next step is to join the CORP domain under the Administrator account. Make sure to supply the Administrator's Account Password (@Deeboodah1!).

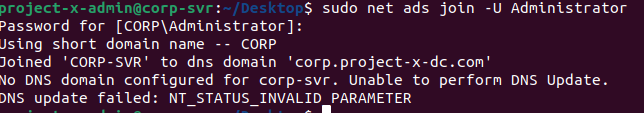

sudo net ads join -U Administrator
Base Layout
(Click to zoom)

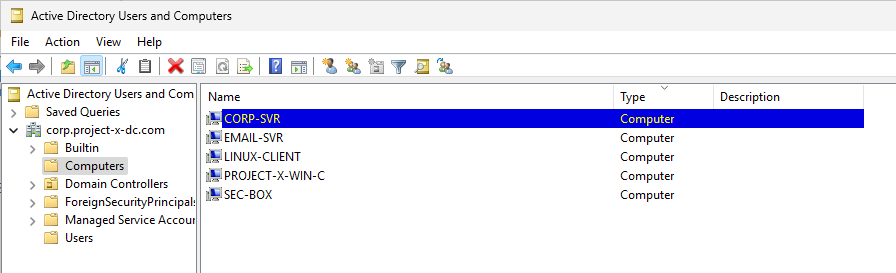

We can double check that our server, CORP-SVR, joined AD by going back to our DC, "Active Directory Users and Computers" --> "Computers".

Base Layout
(Click to zoom)

Let's restart winbind real quick.

sudo systemctl restart winbind
sudo systemctl status winbind
Base Layout
(Click to zoom)

Let's log into the Administrator account through CORP-SVR.

Issue the following command:

sudo login

For the login, take note of the capitalization in CORP+:

CORP+Administrator

Type the Administrator password of @Deeboodah1!.

A new directory /home will be created on this server.

And we can now see we are logged in under CORP+administrator@corp-svr.

Base Layout
(Click to zoom)

Success!

We can logout of AD in Linux and back in when needed.

To log out, we simply type:

logout

To log back in again.

sudo login

Download the Docker Engine.

Next is the Docker Engine. Remember, this empowers the creation and management of containers.

Navigate to https://docs.docker.com/engine/install/ubuntu/ to retrieve the commands to copy.

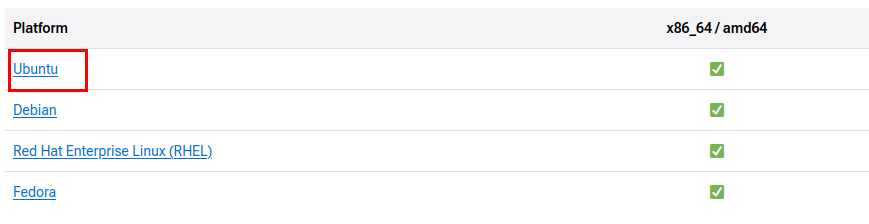

Choose "Ubuntu".

Base Layout
(Click to zoom)

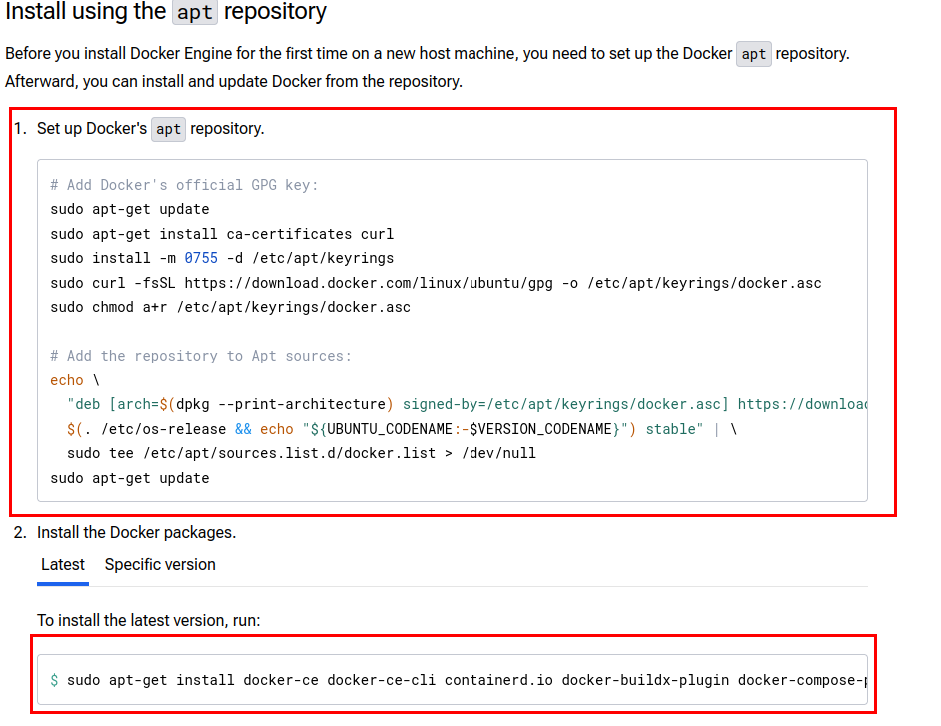

Copy the first command block and paste into terminal.

Base Layout
(Click to zoom)

Upon completion, go back and copy the second command block, paste into terminal.

Base Layout
(Click to zoom)

If prompted, Enter Y to continue.

In order to see if Docker works, the Docker team has provided a default container called hello-world.

If the machine can pull and run this docker image and run as a container, then we are ready to go.

Run the following commands:

sudo docker pull hello-world
sudo docker run hello-world
Base Layout
(Click to zoom)

📷 Take Snapshot!
